Portable work light 20W
Features
🔥Convenient Operation and Battery Indication: Independent switch control and intuitive battery display allow for easy adjustment of lighting and keeping track of battery levels at any time.
🔥High Lumen Efficiency and Waterproofing: High lumen efficiency ensures bright illumination and the IP65 waterproof rating adapts to outdoor environments, making it stable and reliable.
🔥Multi-functionality and Decorativeness: Integrated with multiple lighting modes, including flame effects, it achieves the versatility of one lamp for multiple uses.
Application Scenario

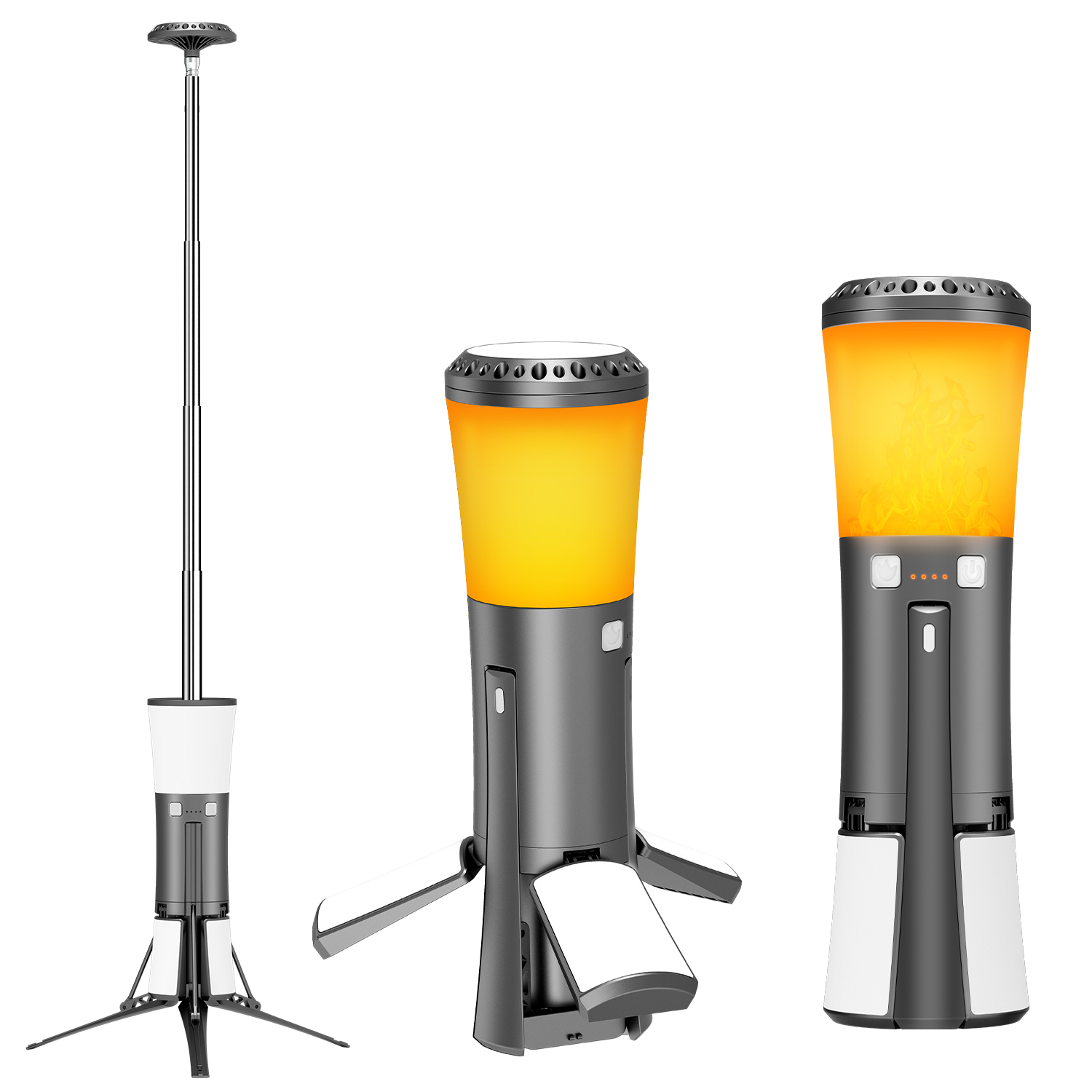

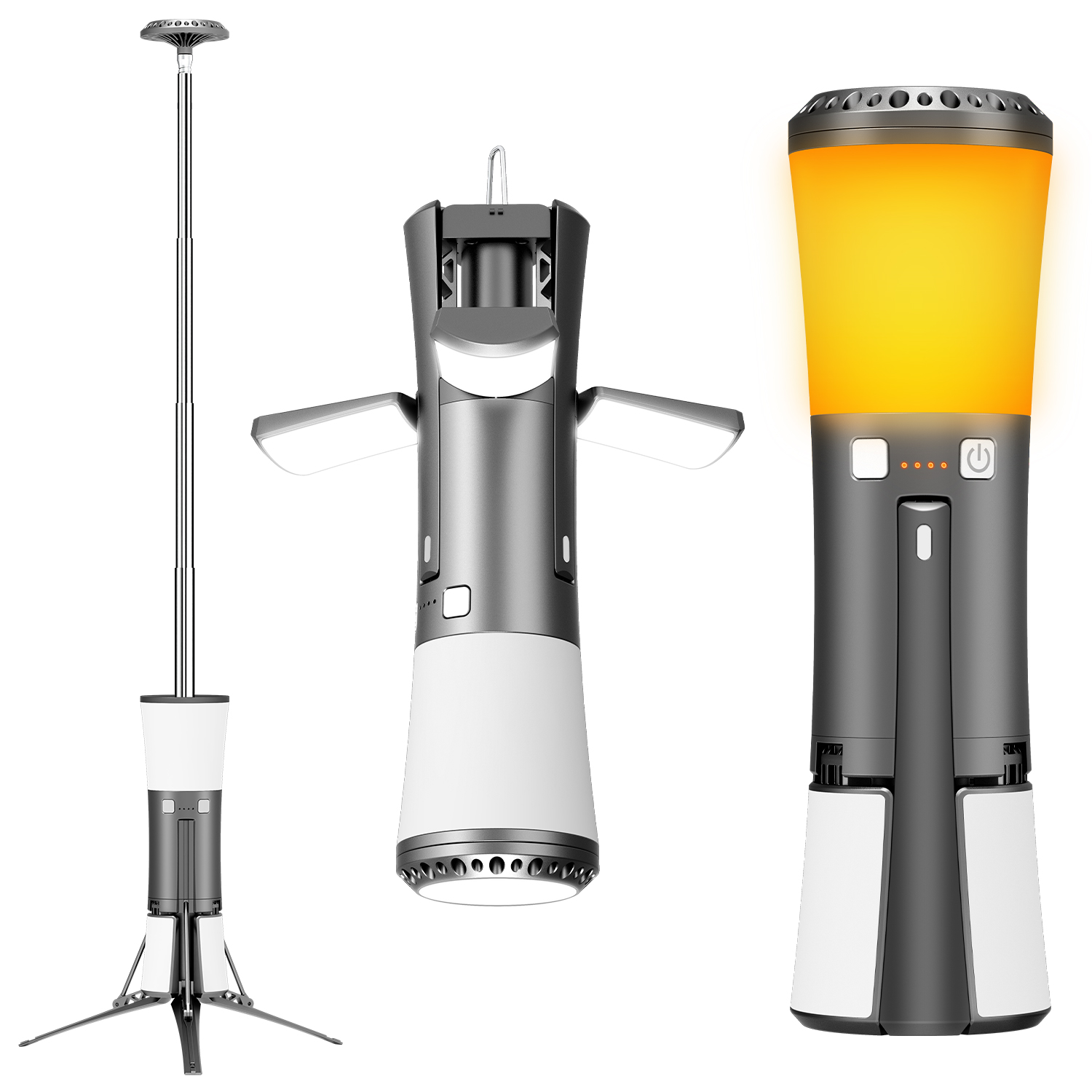

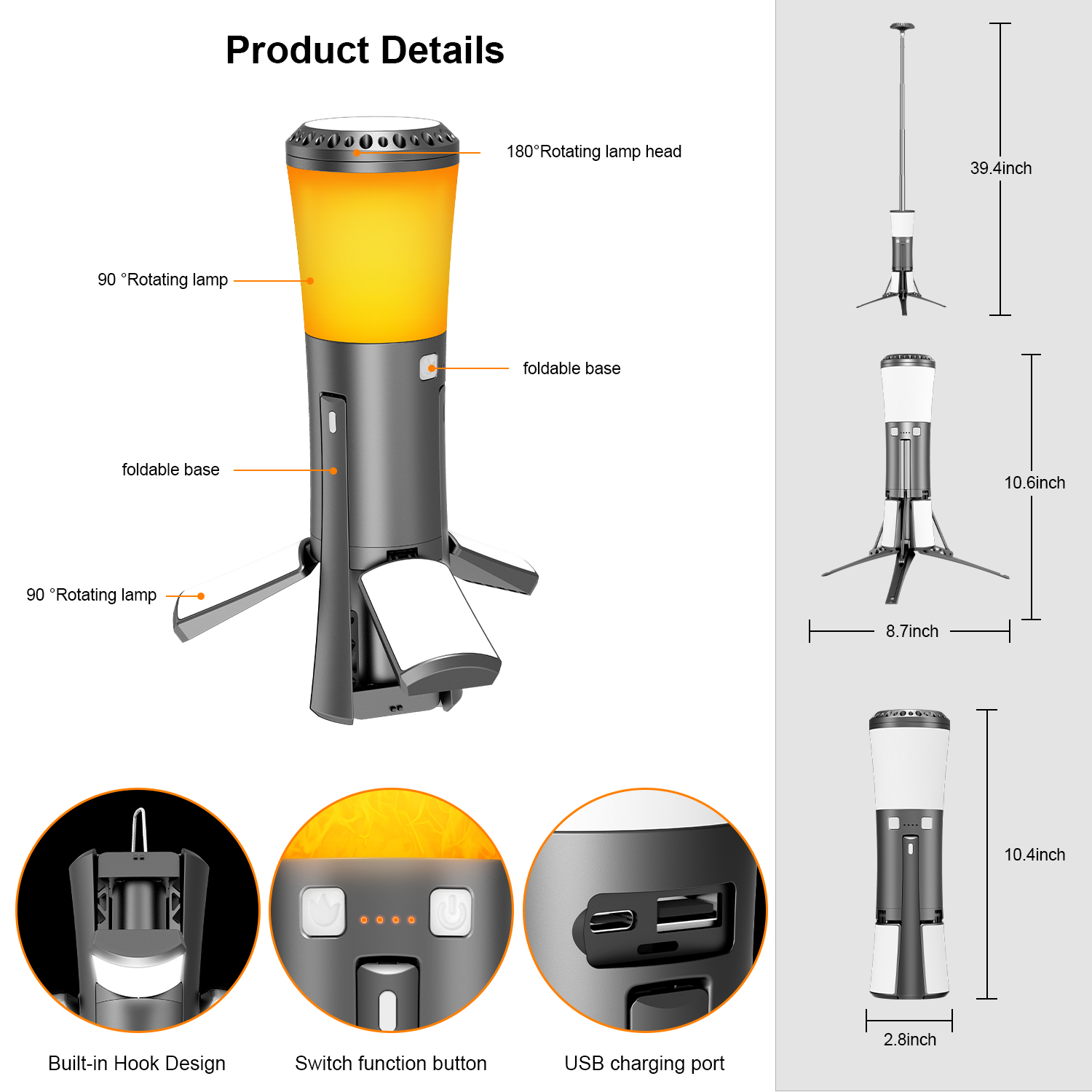

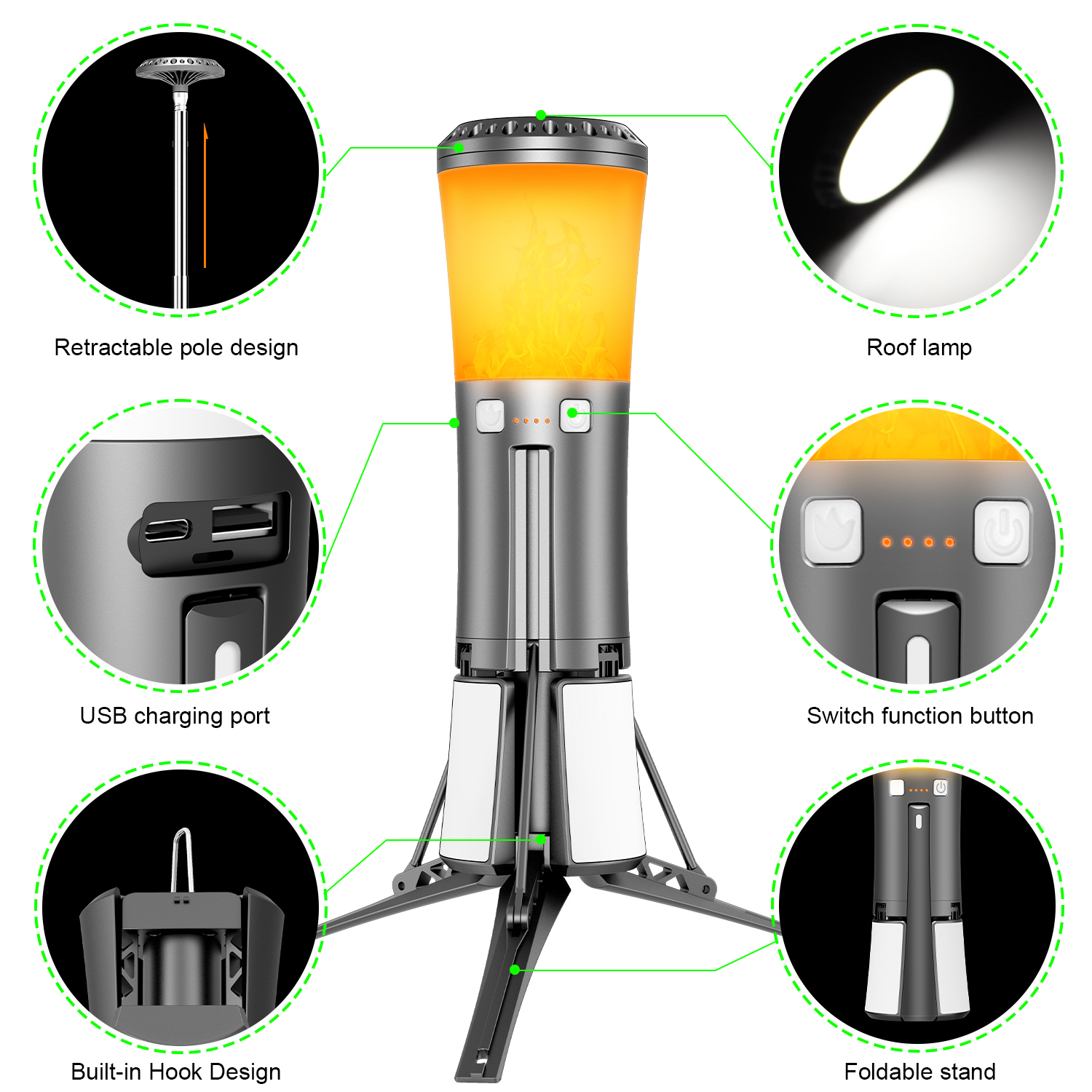

Product Overall Structure:
1.The top illuminated die-casting component can be extended through a telescopic pole,
achieving a maximum extension height of approximately 1 meter.
2.Beneath it is a flame-shaped illuminated cylinder with a built-in flexible flame light board.
3.Two switch buttons, a power level display in the middle, and a USB output/TYPE-C input interface.
4.At the base are three foldable illuminated side panels that can be adjusted to 0°, 45°, and 90° angles
for lighting. These panels are equipped with die-casting support brackets and can be folded
and stored in the middle side section.
5.Functional Parameters: Input: Charging through a 5V 1A TYPE-C charging interface. Indicator light
located at the button, with 4 lights indicating 25%, 50%, 75%, and 100% battery levels.
6.Lithium Battery: 6 sections of 18650 lithium batteries, 2000MAH each, totaling 12000MAH.
It takes 5 hours to fully charge and has a maximum discharge usage time of 8-10 hours.
achieving a maximum extension height of approximately 1 meter.
2.Beneath it is a flame-shaped illuminated cylinder with a built-in flexible flame light board.
3.Two switch buttons, a power level display in the middle, and a USB output/TYPE-C input interface.
4.At the base are three foldable illuminated side panels that can be adjusted to 0°, 45°, and 90° angles
for lighting. These panels are equipped with die-casting support brackets and can be folded
and stored in the middle side section.
5.Functional Parameters: Input: Charging through a 5V 1A TYPE-C charging interface. Indicator light
located at the button, with 4 lights indicating 25%, 50%, 75%, and 100% battery levels.
6.Lithium Battery: 6 sections of 18650 lithium batteries, 2000MAH each, totaling 12000MAH.
It takes 5 hours to fully charge and has a maximum discharge usage time of 8-10 hours.
| Model NO. | NS-BWL20-01 |
|---|---|
| Voltage | AC100-277V |
| Lumen | 2000 |
| Color Temperature(CCT) | 6500K (Daylight) |
| Trademark | NS |
| Warranty(Year) | 2Year |
| Source Color | RGB |
| IP Rate | IP65 |
| Working Time (hours） | 50000 |
| CCT | 6500K Cold White |
| Lamp Size | 82mm*H285mm 3.22″ *H11.22″ |
| LED chip | SMD2835 |
| LED quantity | 3192PCS |
| Brutogewicht: | 1.05 kg |
Operation Instructions for Camping Lantern with Stand:

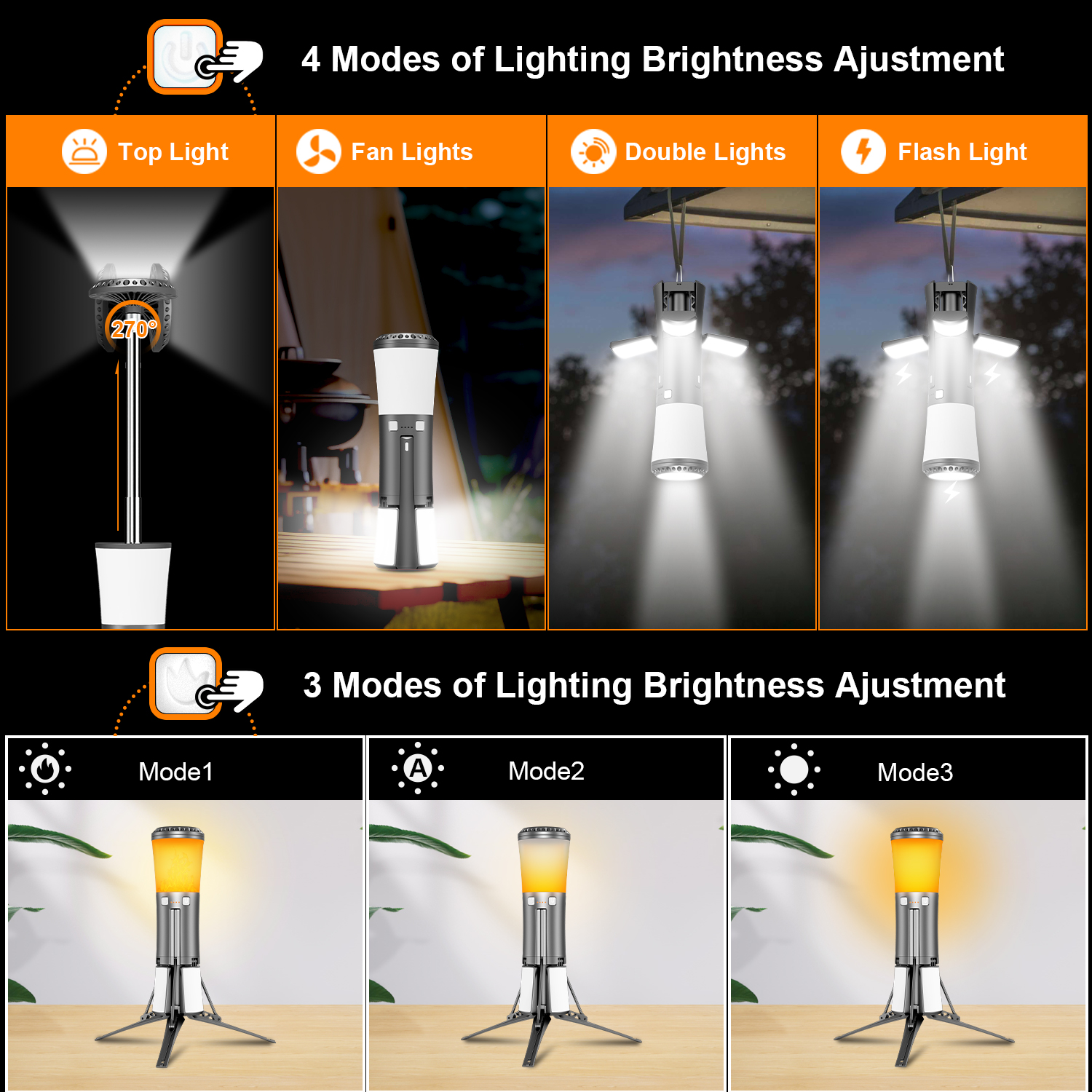

Power Switch: Controls the top light panel and three side panels at the bottom:
(1) Press the button once to turn on the device. The top light panel will illuminate, while the bottom side
panels will remain off. Holding the button will allow linear adjustment of the brightness of the top panel,
ranging from 10% to 100%.
(2) Press the button once to switch to the mode where the bottom side panels are illuminated, while the
top light panel is off. Holding the button will allow linear adjustment of the brightness of the side panels,
ranging from 10% to 100%.
(3) Press the button once again to switch to the mode where both the bottom side panels and the top light
panel are illuminated. In this mode, holding the button will allow both the side panels and the top light
panel to adjust their brightness linearly from 10% to 100%.
(4) Press the button once more to switch to the SOS emergency mode, where both the top light panel and
the bottom side panels will flash simultaneously. Brightness adjustment is not possible in this mode.
(5) In SOS emergency mode, pressing the button once will turn off the lights.
General Procedure: Short press to turn on/switch modes/turn off; Long press to adjust brightness.
Flame Light Switch: Controls the on/off state of the flame light independently:
(1) Press the button once to turn on the light in the general lighting mode; press it once again to
turn off the light.
(2) Press the button once more to switch to the flickering flame effect, which features a built-in gravity
sensing function. Press it once again to turn off the light.
(3) Press the button once more to switch to the breathing effect. Press it once again to turn off the light.
Note: When turning off the light in each mode, the red indicator light will go out after approximately
10 seconds. When the battery is low, the power indicator light and the top light will flash as a warning.
