NS-ACL01 SERIES 30W

Newsunshine LED Corn Light
Newsunshine LED Corn Light
Newsunshine LED Corn Light
Newsunshine LED Corn Light
Newsunshine LED Corn Light Newsunshine LED Corn Light Newsunshine LED Corn Light Newsunshine LED Corn Light
NS-ACL01 SERIES 30W

New sunshine 30W LED light bulb provides 3750 lumen of deluxe daylight,equivalent to 500-watt incandescent,Power saving up to 80% under the same brightness.These corn cob bulbs fit standard medium base (E26) fixtures and an extra bright atmosphere.

  • General illumination
  • Outdoor use in outdoor luminaires only (minimum Ip65)
  • Reduces lumen maintain flux and working life if used
  • in sealed lamp fixtures. ①

Email: order@newsunshine.net

Phone: +1 201 969 5019 (Robert)

Phone: +1 323 616 7060 (Selia)

Product features

  • Unique structure design, removable power supply and light source (easier for power supply and light source replacement if needed).
  • Pure aluminum through hole and air convection design to speed up heat dissipation .
  • No UV and near-IR radiation in the light beam.
  • Very low energy consumption, Lower thermal output.
  • Not suitable for dimmers ,electronic switches and remote controls .
  • Can be easily fitted instead of ordinary light bulbs.
  • Mainly used in work places, supermarkets and public lighting.

Applications

Product datasheet


Technical data
Rated wattage30-34W
Input Voltage100-277V AC
Operating frequency50/60 Hz
Rated power factor <0.90
Power Efficiency<0.87
Humidity>90%
Ambient temperature-40~45℃
Base (standard designation)E26/E27/E39/E40
Replacement conventional lamp powerHPS/HID/MH/CFL Lamp 60W
DimmableNO

Light technical data
Light Source/Count264pcs2835 0.2W LED
Luminous flux.3750±200Lm
Color temperatureWarm White:3000-3500K
NaturalWhite:4000-5000K
Cool White: 5500-6500K
Color rendering index Ra Ra<80
Starting time0 S
LED Emitter Life50000hrs
Lifepan of LED Lamp35000hrs

SPECIFICATIONS

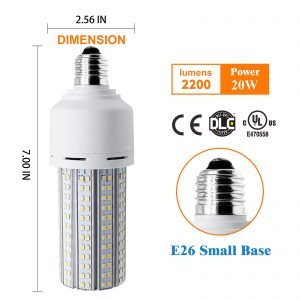

ModelPowerBaseLumensDim.(E26)CTN sizeCTN quantityCTN weight
NS-ACL-20W-0120WE26 E27 E39 E402500LM2.56x2.56x7.48in,6.5x6.5x19cm20.08x16.54x15.55in,51x42.01x39.5cm40pcs36.4lbs, 16.51kg
NS-ACL-30W-0130WE26 E27 E39 E403750LM2.56x2.56x7.48in,6.5x6.5x19cm20.08x16.54x15.55in,51x42.01x39.5cm40pcs36.4lbs 16.51kg
