LED UFO High Bay 180W-S

IMG_9576-1
NSUFO-S180W-E
NSUFO-S250W-S
IMG_9576-1 NSUFO-S180W-E NSUFO-S250W-S

UFO Features Description

Newsunshine 180W UFO High Bay is featured with high anti-corrosion, low light attenuation, great heat dissipation, easy for installation,IP65 rating, long lifespan, and High CRI

Application

Widely used in the factories, warehouses, stadiums, stations, exhibition centers and other areas.

Email: order@newsunshine.net

Phone: +1 201 969 5019 (Robert)

Phone: +1 323 616 7060 (Selia)

Product Features


  • The stamping type uses thick aluminum fixture, surface is anodized, corrosion-resistant,pressure-resistant and crack-resistant.
  • The stamping type uses thickened precision aluminum, turbine heat dissipation, getting a longer life.
  • The thickened hollow fixture of the stamping type is light-proof, small size easy for transportation.
  • Outdoor IP65 rating.

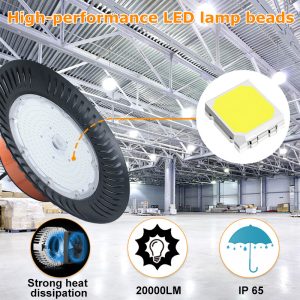

  • Using SMD3030 chip,High color rendering index to restore the real color of the object,low light attenuation.
  • Firm and durable, easy installation and transportation.
  • Widely used in the factories, warehouses, stadiums, stations, exhibition centers and other areas.

Application

Specifications


SPECIFICATION NSUFO-S180W-S
ELECTRICAL SPECIFICATIONS Input Voltage (V) AC100-277V,50/60Hz
Power Factor 120V>0.98,277V>0.9
Power Watts(W) 250W
Dimming Availability NO
THD <20%
Efficiency ≥90%
PHOTOMETRIC INFOMATION Lumens Delivered (lm) 20000LM±5%
Color Rendering Index (CRI) >80
CCT(K) 2700-6500K
Light Type SMD 3030
Beam Angle 120º
LED Amount 288 LEDs
GENERAL PERFORMANCE IP Grade IP65
Material ADC12 die-cast aluminum
Lamp Size Ф347*H165 mm Ф13.7"*H 6.5"
Fixture Weight 2.15Kg(4.7lbs)
Storage temperature -20°C - 55°C (-4°F to 131°F)
Operating Temperature -20°C - 45°C (-4°F to 113°F)
Environment Humidity 40% ~ 90% RH, non condensing
Certiication CE,ROHS
Life Span >30,000 hours(Luminance decrease is less than 30%)
