LED UFO High Bay 250W-S

NSUFO-S250W-S
NSUFO-S250W-S
NSUFO-S250W-S
NSUFO-S250W-S
NSUFO-S250W-S NSUFO-S250W-S NSUFO-S250W-S NSUFO-S250W-S

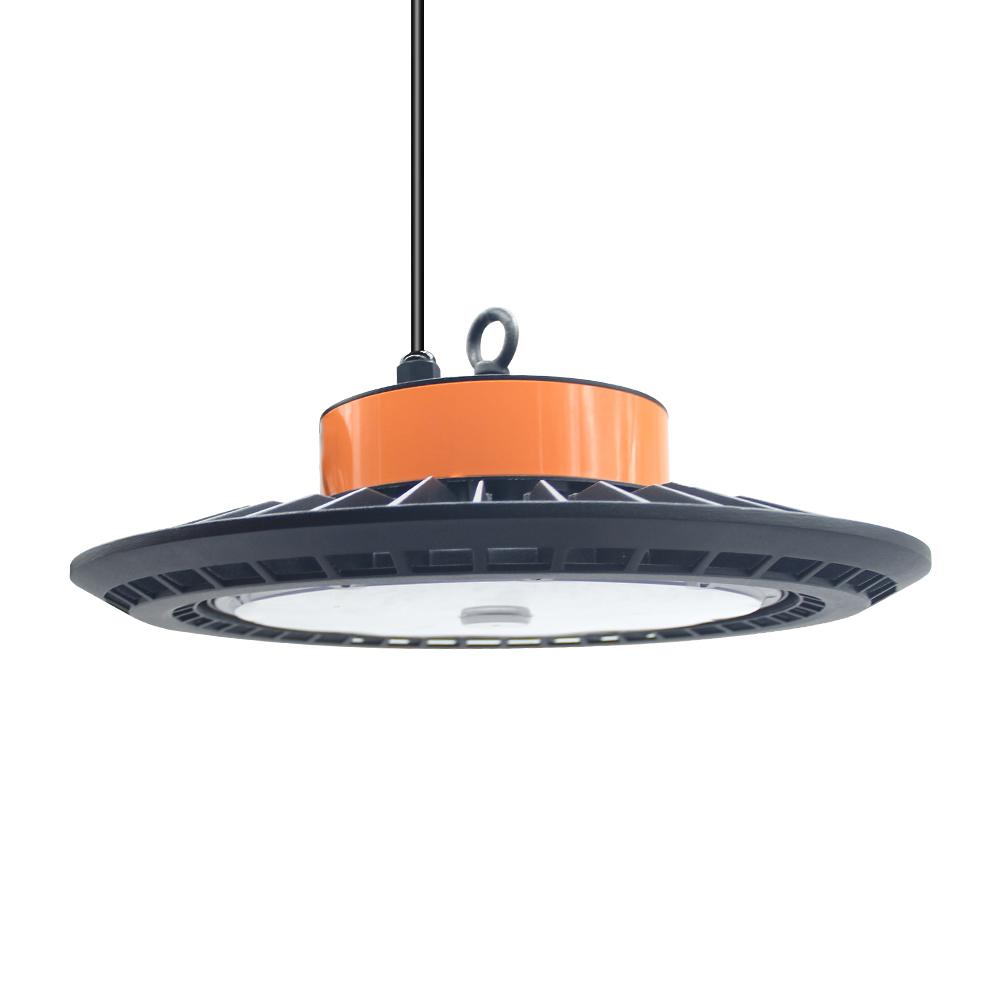

LED UFO High Bay 250W


  • Wide voltage input,
  • High efficiency power supply.
  • High quality 6063 aluminum,
  • High brightness SMD 3030 chip

Email: order@newsunshine.net

Phone: +1 201 969 5019 (Robert)

Phone: +1 323 616 7060 (Selia)

Product Features


  • The casting type adopts integrated die-casting molding. surface is anodized,corrosion-resistant, pressure-resistant and crack-resistant.
  • The casting type uses raised blades, superior heat dissipation performance to enhances the overall sealing of the lamp.
  • The large fixture of the casting type produces sufficient brightness.
  • Outdoor IP65 rating.
  • Using SMD3030 chips,High color rendering index to restore the real color of the object,low light attenuation.
  • Firm and durable, easy installation and transportation.

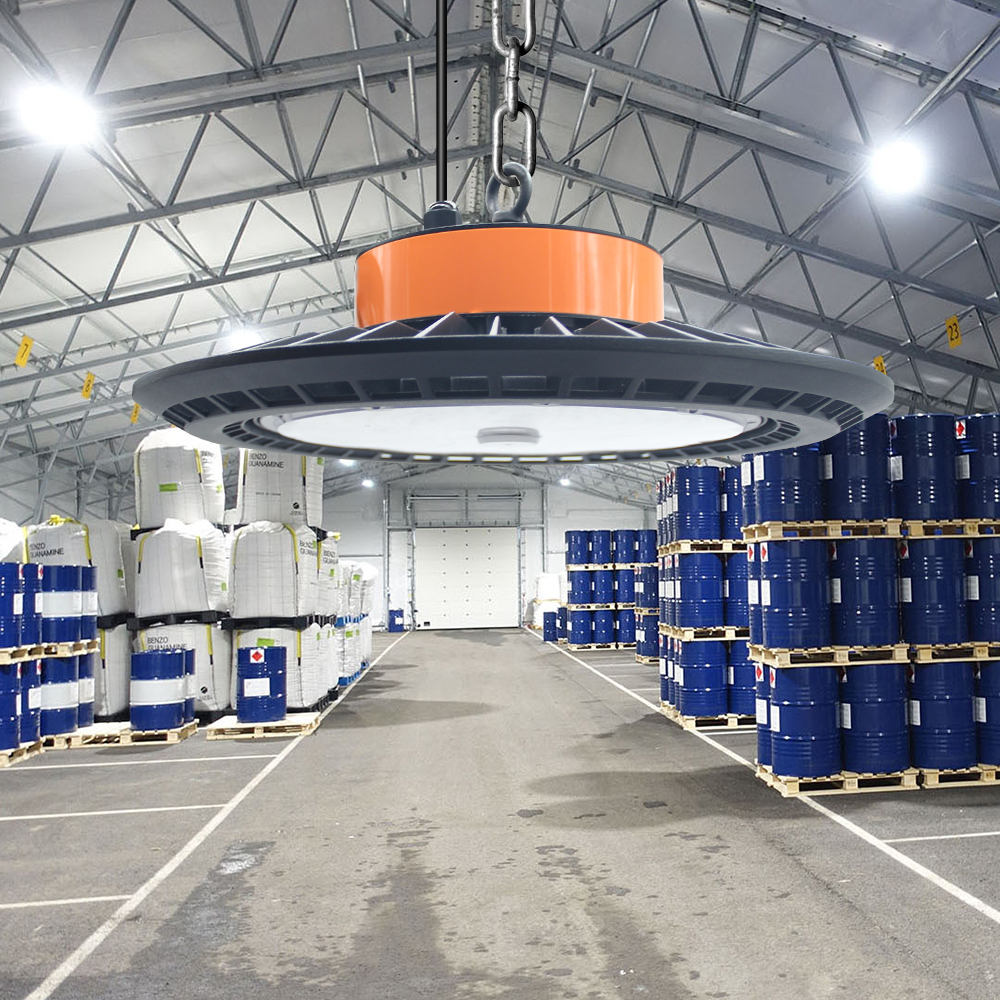

  • Widely used in the factories, warehouses, stadiums, stations, exhibition centers and other areas.

Application

Specifications


SPECIFICATION NSUFO-C250W-S
ELECTRICAL SPECIFICATIONS Input Voltage (V) AC100-277V,50/60Hz
Power Factor 120V>0.98,277V>0.9
Power Watts(W) 250W
Dimming Availability NO
THD <20%
Efficiency ≥90%
PHOTOMETRIC INFOMATION Lumens Delivered (lm) 28000LM±5%
Color Rendering Index (CRI) >80
CCT(K) 2700-6500K
Light Type SMD 3030
Beam Angle 120º
LED Amount 360 LEDs
GENERAL PERFORMANCE IP Grade IP65
Material Aluminum 6063
Lamp Size Ф395*H155 mmФ15.55"*H 6.1"
Fixture Weight 3.3Kg(7.3lbs)
Storage temperature -20°C - 55°C (-4°F to 131°F)
Operating Temperature -20°C - 45°C (-4°F to 113°F)
Environment Humidity 40% ~ 90% RH, non condensing
Certiication CE,ROHS
Life Span >30,000 hours(Luminance decrease is less than 30%)
