20000LM,5000k,277V,IP65
UFO Features Description
Newsunshine 180W UFO High Bay is featured with high anti-corrosion, low light attenuation, great heat dissipation, easy for installation,IP65 rating, long lifespan, and High CRI.Widely used in the factories, warehouses, stadiums, stations, exhibition centers and other areas.
Email: order@newsunshine.net
Phone:+86 13510025749 (Robert)
Product features
- The stamping type uses thick aluminum fixture, surface is anodized, corrosion-resistant,pressure-resistant and crack-resistant.
- The stamping type uses thickened precision aluminum, turbine heat dissipation, getting a longer life.
- The thickened hollow fixture of the stamping type is light-proof, small size easy for transportation.
- Outdoor IP65 rating.
- Using SMD3030 chip,High color rendering index to restore the real color of the object,low light attenuation.
- Firm and durable, easy installation and transportation.
- Widely used in the factories, warehouses, stadiums, stations, exhibition centers and other areas.
Specifications
| Input Voltage (V) | Power Factor | Power Watts(W) | Dimming Availability | THD | LED Amount | IP Grade |
|---|---|---|---|---|---|---|
| AC100-277V,50/60Hz | 120V>0.98,277V>0.9 | 180W | NO | <20% | 288 LEDs | IP65 |
| Efficiency | Lumens Delivered (lm) | Color Rendering Index (CRI) | CCT(K) | Light Type | Beam Angle | Material |
| ≥90% | 20000LM±5% | >80 | 2700-6500K | SMD 3030 | 120º | ADC12 die-cast aluminum |
| Lamp Size | Fixture Weight | Storage temperature | Operating Temperature | Environment Humidity | Certiication | Life Span |

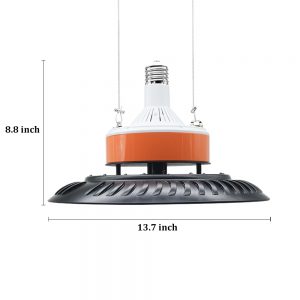

| Ф347*H225 mmФ13.7"*H 8.85" | 2Kg(4.4lbs) | -20°C-55°C (-4°F to 131°F) | -20°C - 45°C (-4°F to 113°F) | 40% ~ 90% RH, non condensing | CE,ROHS | >30,000 hours(Luminance decrease is less than 30%) |
Applications
